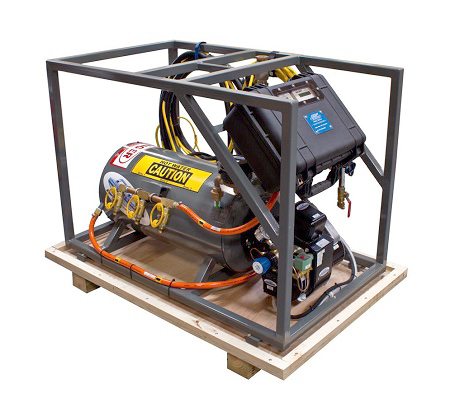

This new Monkey Heater unit is smaller and lighter than previous models, incorporating a number of features including detachable fuel tanks, that make fuel transfer a breeze. Standard on every system is a small, submersible water pump (eliminating pump-priming difficulties) that moves up to eleven gallons of water per minute. The pump comes with a 25-foot umbilical, while the heater unit includes an LED digital read-out for monitoring water temperature, with a range of up to 250 degrees Fahrenheit.
Heat is supplied by a diesel-fired burner capable of 350,000 BTU. A manual fuel pressure adjustment has been added that enables divers to maintain a constant water temperature when the system is in use. The variation in temperature is maintained at plus or minus one degree, a great improvement over older systems. The Monkey Heater system uses an adjustable high temperature shut-off to shut down automatically should the water temperature become too warm. In addition, it has a special flow switch that will shut the system down should the water supply be accidentally cut off. The entire electrical system is sealed and can be operated outdoors in moist environments.
Features:
-
Unit is smaller and lighter than previous models
-
Detachable fuel tanks, makes fuel transfer a breeze
-
Standard on every system is a small, submersible water pump (eliminating pump-priming difficulties) that moves up to eleven gallons of water per minute
-
Submersible pump comes with a 25-foot umbilical
-

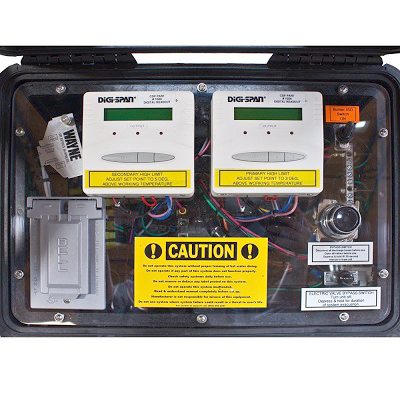

LED digital read-out for monitoring water temperature, with a range of up to 250 degrees Fahrenheit
-
Heat is supplied by a diesel-fired burner capable of 350,000 BTU
-
Adjustable high temperature shut-off to shut down automatically should the water temperature become too warm
-
Special flow switch that will shut the system down should the water supply be accidentally cut off
-
The entire electrical system is sealed and can be operated outdoors in moist environments
Specifications:
-
Voltage: 120V / 60 Hz Single Phase 20 Amp
-
BTU: 350,000
-
Outlet Water Temperatures: In excess of 200° F, depending on the size of the fuel nozzle used and the inlet water temperature
-
Operating Output Temperature: +/- 1° F
-
Submersible Water Pump: 11 GPM
-
Pumping-lift Head Pressure Capability: 600 feet at 40 PSI
-
Dimensions: 30-1/4 in. H × 26 in. W × 46 in. D (77 cm H x 66 cm W x 116 cm D)
-
Weight: 430 lbs (195 kg)
Note: Do not heat salt water in excess of 135 degrees Fahrenheit for it may crystallize inside the coils.
