Description

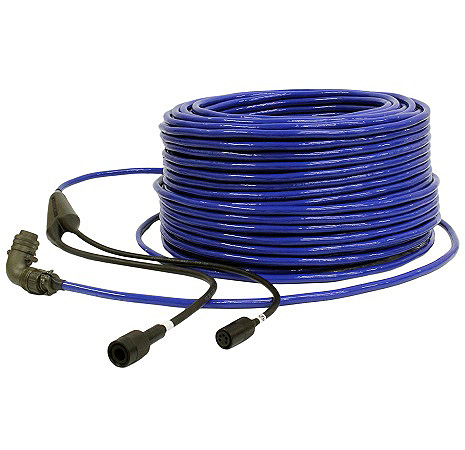

AXSUB® Underwater Video & Data Cable is designed for the commercial diving industry. The 1.8mm (0.070 in) wall thickness, Pressure Extruded Polyurethane jacket is extremely resistant.
The cable has all conductors required to operate all AXSUB video, depth and Lighting systems:
1) One Shielded Twisted Pair with drain wire used for 24VDC LED Lamp power
2) One Shielded Twisted Pair with drain wire used for 12VDC Camera power
3) One Single conductor for Lamp Dimmer Control
4) One Stranded 75 Ohm Mini Coaxial Cable for video camera transmission
5) One Data Rated Shielded Twisted Pair with drain wire used for SMART Camera sensor transmission
The cable can be sold complete with terminations (up to 305m or 1000 ft) or non-terminated up to 760m or 2500 ft spools. Overall diameter is 12.7 ± 1.3 mm or 0.50 ± 0.05 in. Bend radius is 40mm (1 9/16 in). Breaking length is 2.9 kN or 650 lbf.
VDC-B
AXSUB® Professional Underwater Communication & Data Cable, by ft
VDC-CE
AXSUB® Professional Underwater Video & Data Cable, CE, Fully Shielded, Bare, per ft
VDC-TERM-3F-IL
AXSUB® Video & Data Cable VDC-B, Terminated with 8-pin In-Line AMPHENOL MIL-SPEC Connector on SURFACE END and Y-Splice with MCIL3F + RMG-3-FS with Delrin Sleeves on DIVER END
VDC-TERM-3F-RA
AXSUB® Video & Data Cable VDC-B, Terminated with 8-pin Right Angle AMPHENOL MIL-SPEC Connector on SURFACE END and Y-Splice with MCIL3F + RMG-3-FS with Delrin Sleeves on DIVER END
VDC-TERM-5F-IL
AXSUB® Video & Data Cable VDC-B, Terminated with 8-pin In-Line AMPHENOL MIL-SPEC Connector on SURFACE END and Y-Splice with MCIL5F + RMG-3-FS with Delrin Sleeves on DIVER END
VDC-TERM-5F-RA
AXSUB® Video & Data Cable VDC-B, Terminated with 8-pin Right Angle AMPHENOL MIL-SPEC Connector on SURFACE END and Y-Splice with MCIL5F + RMG-3-FS with Delrin Sleeves on DIVER END
VDC-TERMI-8F-IL
AXSUB® Video & Data Cable VDC-B, Terminated with 8-pin In-Line AMPHENOL MIL-SPEC Connector on SURFACE END and I-Splice with SCIL8F with Delrin Sleeve on DIVER END
VDC-TERMI-8F-RA
AXSUB® Video & Data Cable VDC-B, Terminated with 8-pin Right Angle AMPHENOL MIL-SPEC Connector on SURFACE END and I-Splice with SCIL8F with Delrin Sleeve on DIVER END
TermY-8M-MC3F/G3-1.2
AXSUB® Termination ”Y” with SCIL8M, MCIL3F and RMG-3-FS with Sleeves, tail 1.2 m long
TermY-8M-MC3F/RMG3F
AXSUB® Termination ”Y” with SCIL8M, MCIL3F and RMG-3-FS w Sleeves
TermY-8M-MC5F/G3-1.2
AXSUB® Termination ”Y” with SCIL8M, MCIL5F and RMG-3-FS w Sleeves, tails of 1.2m long
TermY-8M-MC5F/RMG3F
AXSUB® Termination on Diver Side Y Splice from MC8M to MC5F and RMG3 with Delrin Locking Sleeves
