Description

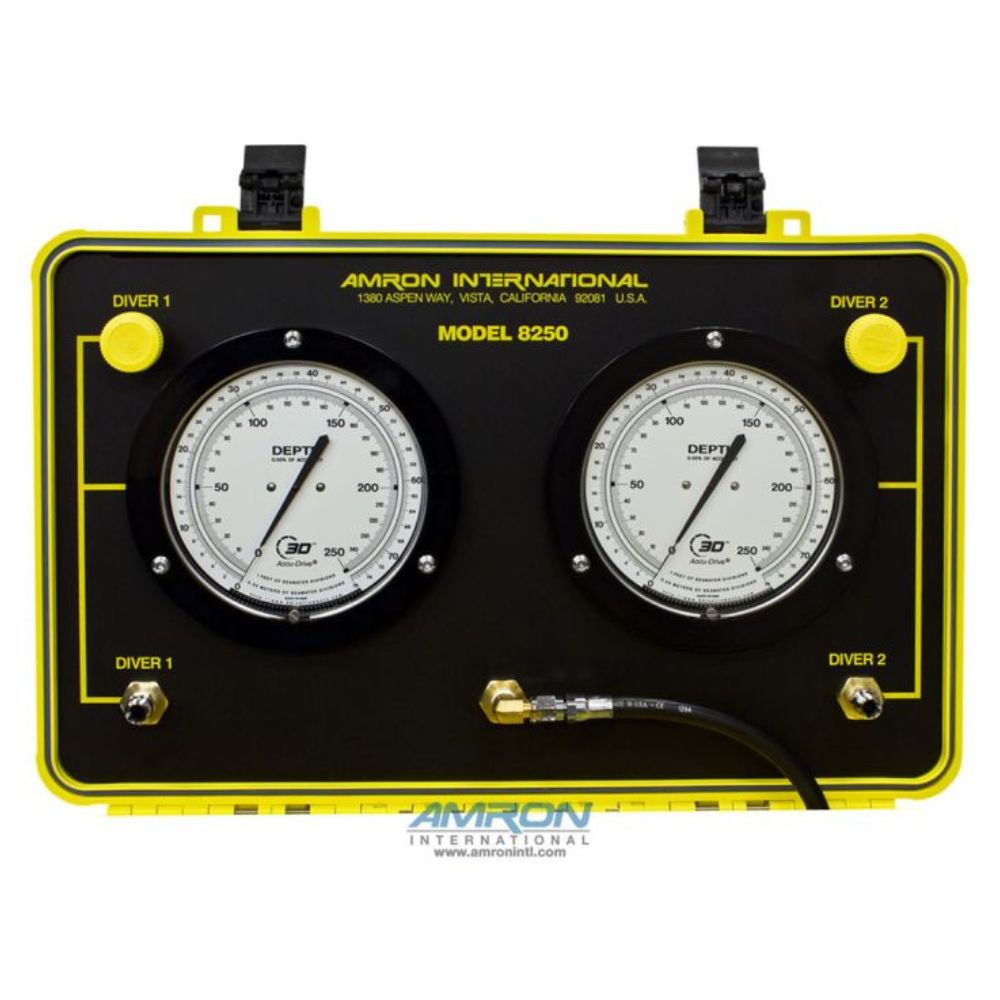

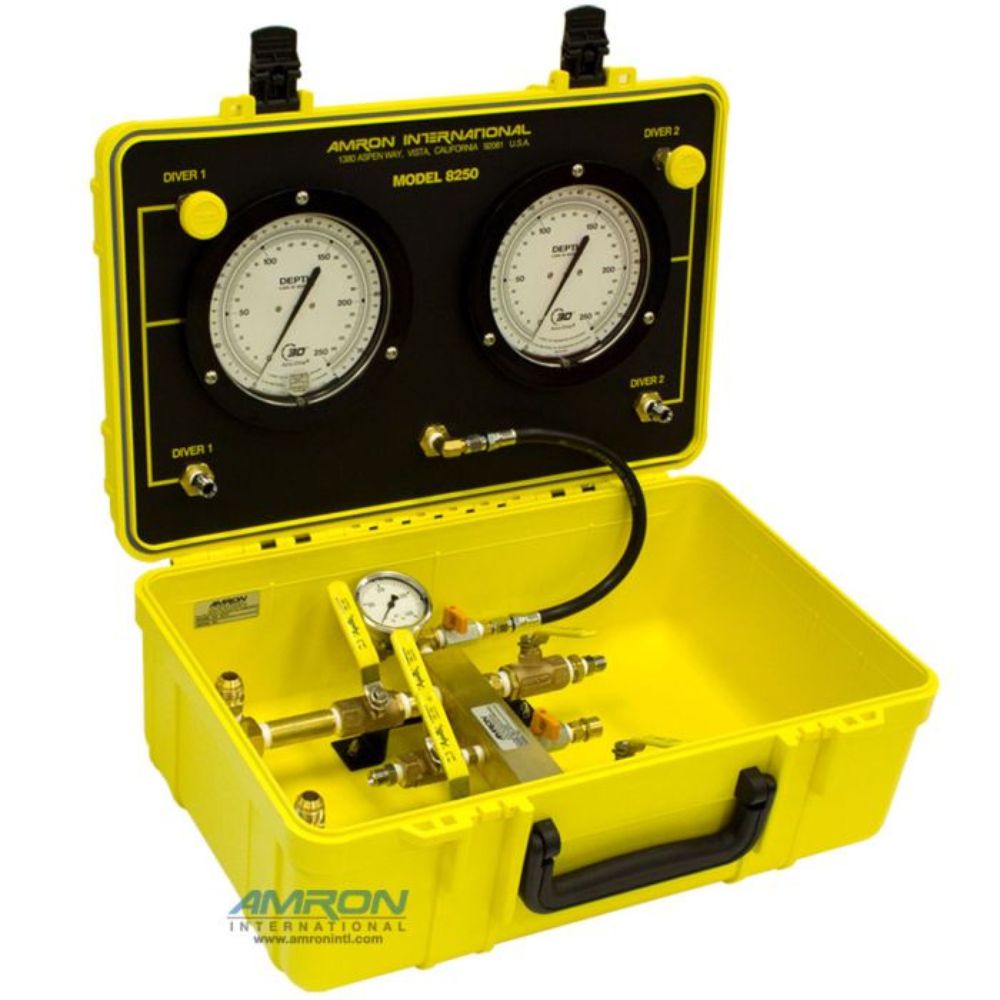

The Amron International 8250 Two-Diver Low Pressure Air Control System is a central control point for the supply of breathing air for up to two commercial divers. The air control system was designed and built for quick setup and breakdown and its compact design maximizes its mobility.
The 8250 is a cost effective product intended for customers who primarily use low pressure compressors to supply air to the divers.
Features:
-

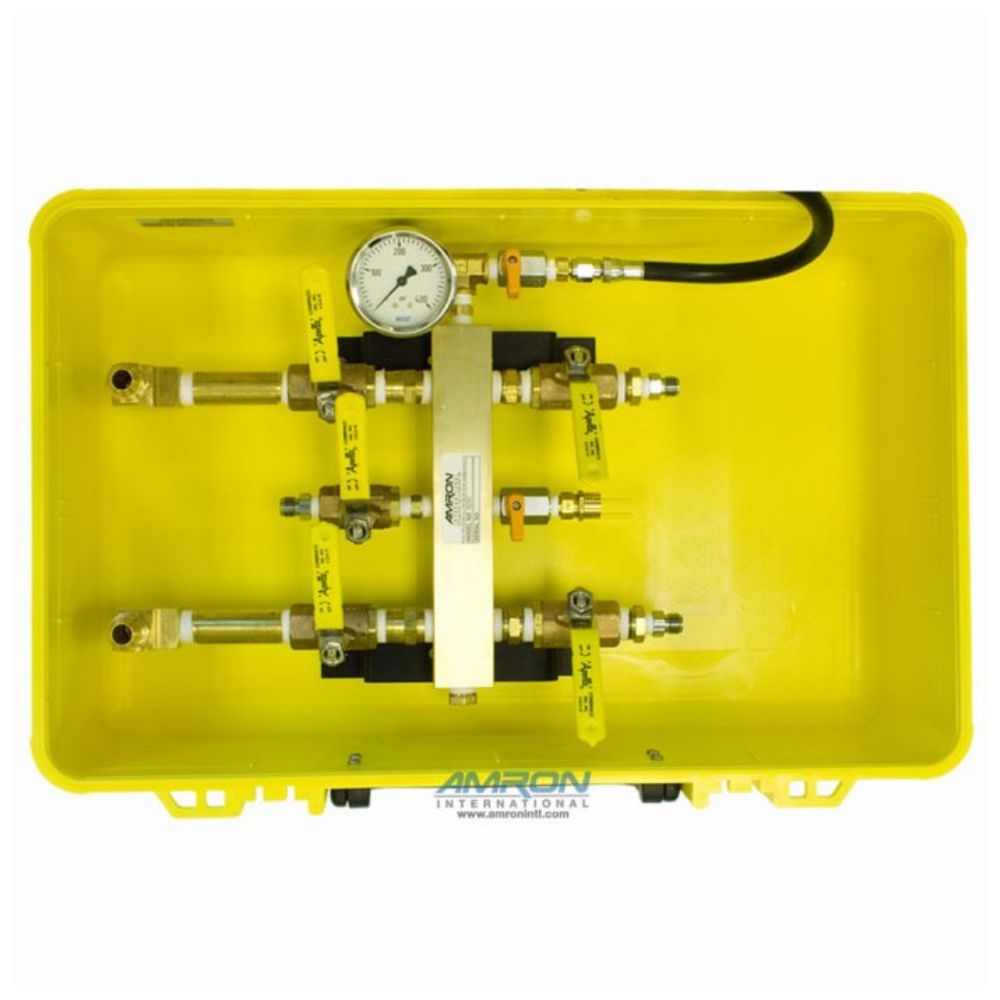

(1) Brass Manifold
-
(2) Air Inlets, #10 JIC Fitting
-
(2) Air Outlets, 9/16-18 inch Oxygen Fitting
-
(1) Emergency Air Inlet, 9/16-18 inch Oxygen Fitting
-
(2) Brass Check Valves and (1) Relief Valve
-
(2) 6 inch, Dual Scale 0-250 FSW/0-76 MSW, 1/2% Accuracy, 3DI Precision Depth Gauge
-
(2) Pneumo Gauge Outlets, 9/16-18 inch Oxygen Fitting
-
(1) 0-400 PSI Stainless Steel Pressure Gauge – Accuracy +/- 1.5%
-

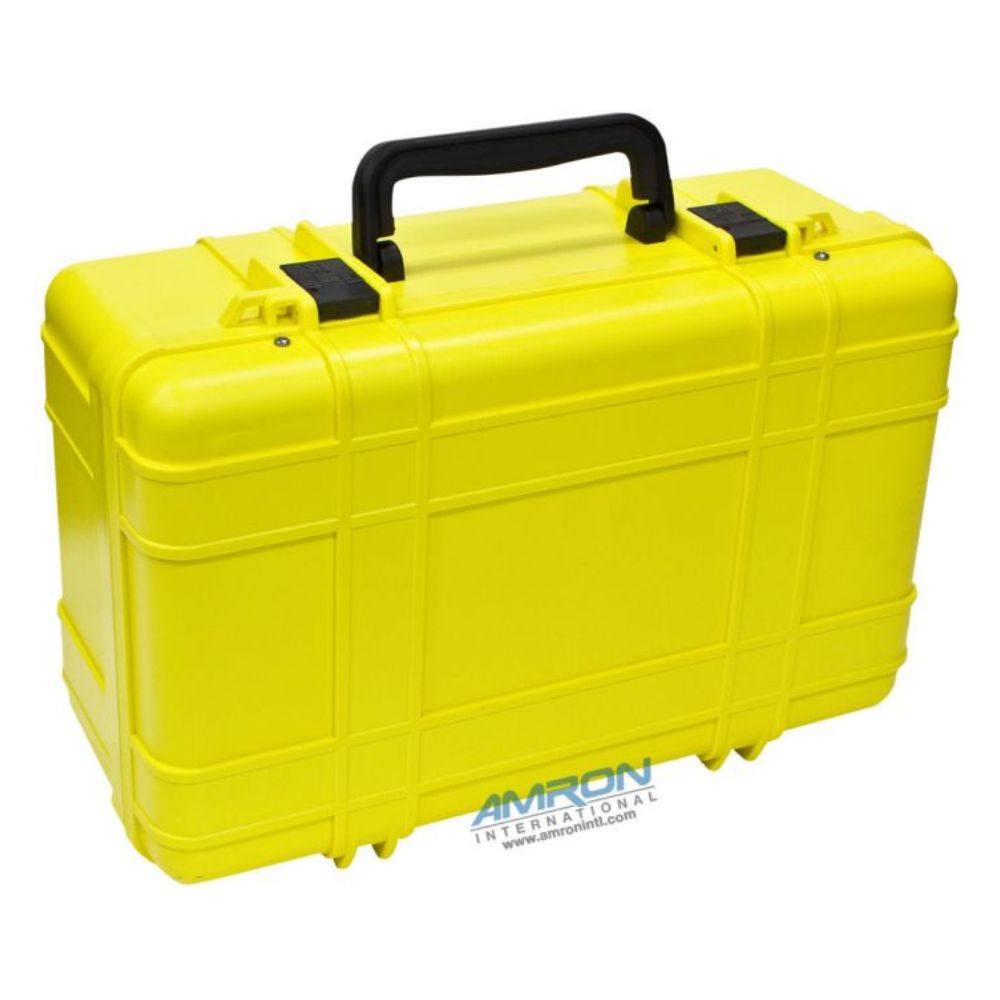

(1) Durable Plastic Case
Specifications:
-
Maximum Working Depth: 220 ft.
-
Maximum Air Inlet Pressure: 225 PSI
-
Case Color: Yellow
-
Approximate Weight: 45 lbs.
-
Width: 21.75 in.
-
Depth: 14.75 in.
-
Height: 9.5 in.
