Description
Real-time audio processing uses both frequency and time domain technologies for optimized performance over a wide range of depths and background noise
- Treble Boost Control provides means of adjustment to enhance the diver’s microphone performance
- Treble Boost Control feature allows for optimum frequency enhancement and improved intelligible speech from the diver’s voice
- The Depth Control increases or decreases the diver’s depth algorithm changing the amount of correction to the raw helium speech
- Mode Switch allows for two choices of operation
- Mode A is typically used for shallow depths with lower concentrations of Helium
- Mode B is used for deeper depths requiring higher concentrations of Helium
- Advanced Noise Reduction Filter (NRF) incorporates a complex DSP algorithm which filters out background noise while allowing the diver’s speech to be clear and intelligible
- Noise Reduction Filter has four adjustment levels for the reduction of background noise in both depth modes A and B
- Mode A, simply toggle the mode switch from A to B and back to A – Each time a toggle cycle is completed, the filter will advance to the next level
- Mode B, simply toggle the mode switch from B to A and back to B – Each time a toggle cycle is completed, the filter will advance to the next level

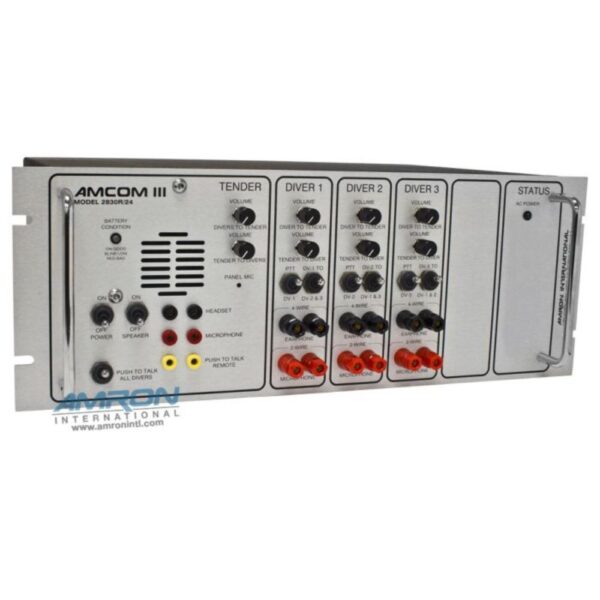

Included with Amcon III is:
- Hand-Held Push-to-Talk Microphone
- (2) 6VDC Spring-Top Gel-Cell Rechargeable Batteries – Expected life: 20 Hrs
- MS Connector – 20 Pin
- MS Connector Cable Clamp
- Power Cord
- User Manual
Specifications
- Audio Power Output: 20 Watts per channel
- Frequency Response: 300Hz to 12kHz
- Isolation Transformer: Split Bobbin Medical Grade
- Dimensions: 7 in. H x 19 in. W x 13in. D (17.8 cm x 48.3 cm x 33.0 cm)
- Weight: 20 lbs (9.1kg)
- Power: 110/220VAC 50/60 Hz (automatic sensing), or 2 Internal Batteries 12VDC
- Rechargeable with internal charger
A Optional Helium Speech Unscrambler (HSU) for the Amcom III Rack Mount Communicator is Available.
The optional DSP2 Helium Speech Unscrambler (HSU) utilizes the latest in technological advancements. The heart of our design incorporates dual digital signal processors. This revolutionary concept allows our HSU to be truly the first unscrambler to use both frequency and time domain technologies for real-time audio processing. This state-of-the-art digital design accommodates a multitude of functions ranging from the correction of the diver’s raw helium speech to normal intelligible voice levels, advanced treble boost and complex noise reduction filters (NRF).
Tech Note
All communicators will transfer topside noise to the diver when using the radio speaker only. To eliminate background noise and achieve clear concise communications, use a Push-to-Talk microphone, headset, or a Remote Walk-and-Talk with a headset.
